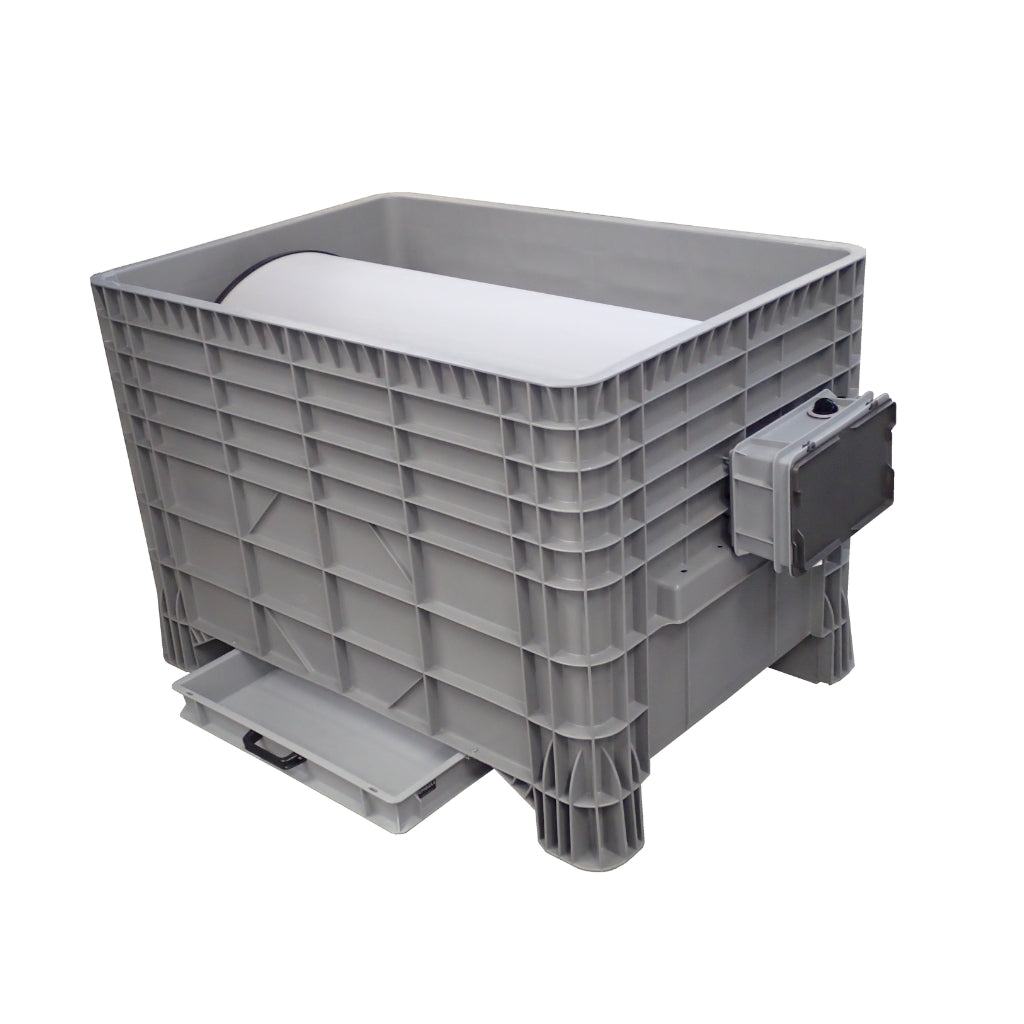

The Pollinator® P5000 is a heavy-duty, industrial-scale dry sifting machine built for high-volume, solventless extraction. Designed to process large batches efficiently with minimal manual handling, the P5000 is ideal for commercial environments and professional operators who require maximum throughput and consistent results.
High-Volume Processing
With a capacity of approximately 5000 grams of dry material per cycle, the P5000 significantly increases output compared to smaller models. It is engineered for operations that demand reliability, efficiency, and scalability.

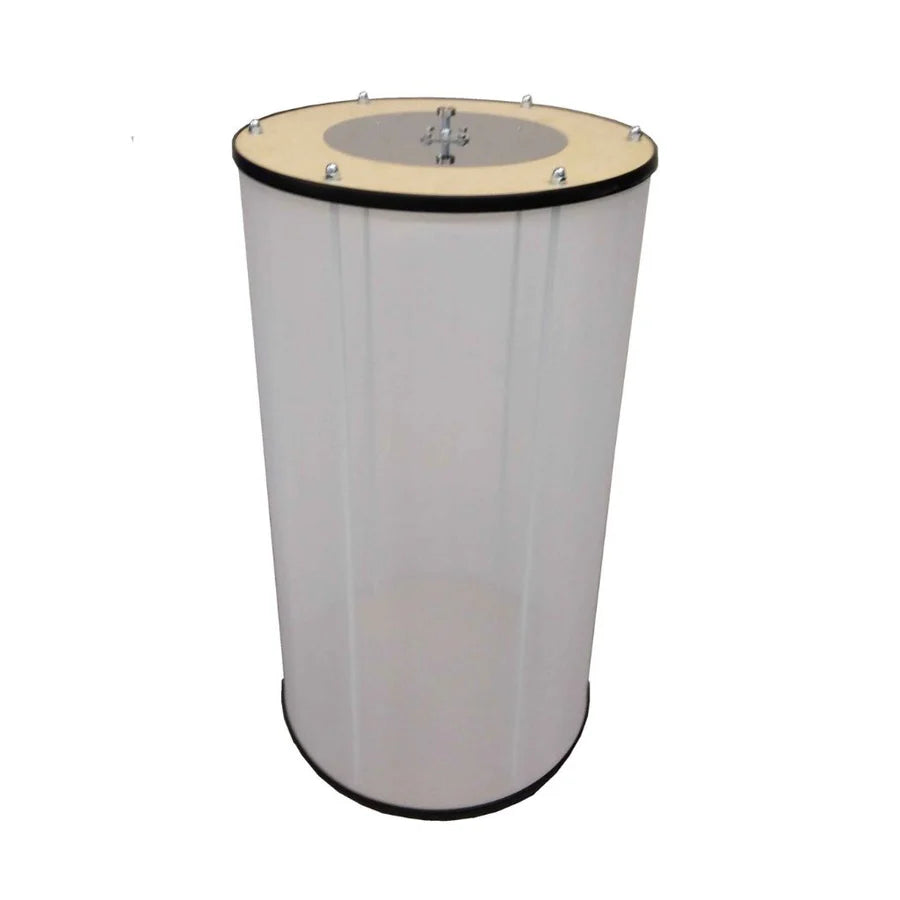

150 Micron Drum as Standard – Custom Microns Available
Supplied with a 150 micron mesh screen as standard, providing an excellent balance between yield and purity.
We also supply a wide range of alternative micron sizes to suit different extraction goals. Whether you require finer mesh for higher purity grades or larger microns for increased throughput, we can source and supply virtually any micron specification to match your workflow.
Advanced Control & Smooth Operation
- Adjustable speed control (approx. 30–40 RPM range)
- Slow start and stop functionality
- Digital programmable timer
- Overload protection system
- Automatic drum positioning for easier loading and unloading
These features allow precise control over the extraction process while ensuring long-term durability and dependable performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Pollinator® P5000 |
| Processing Capacity | Approx. 5000g per cycle |
| Standard Screen Size | 150 Micron |
| Alternative Micron Options | Wide range available on request |
| Motor | 24V Electric Motor |
| Speed Range | Approx. 30–40 RPM |
| Timer | Digital programmable |
| Safety Features | Overload protection, soft start/stop |
| Construction | Heavy-duty, food-grade materials |
| Dimensions | Approx. 120 × 80 × 80 cm (main unit) |
| Weight | Approx. 48 kg |
| Application | Solventless dry resin separation |
Built for serious production environments, the Pollinator® P5000 delivers powerful, consistent dry sift performance with the flexibility to tailor micron sizes to your exact requirements.
If you require additional drums in specific micron sizes or would like guidance selecting the right mesh for your process, get in touch and we’ll help configure the ideal setup for your operation.
