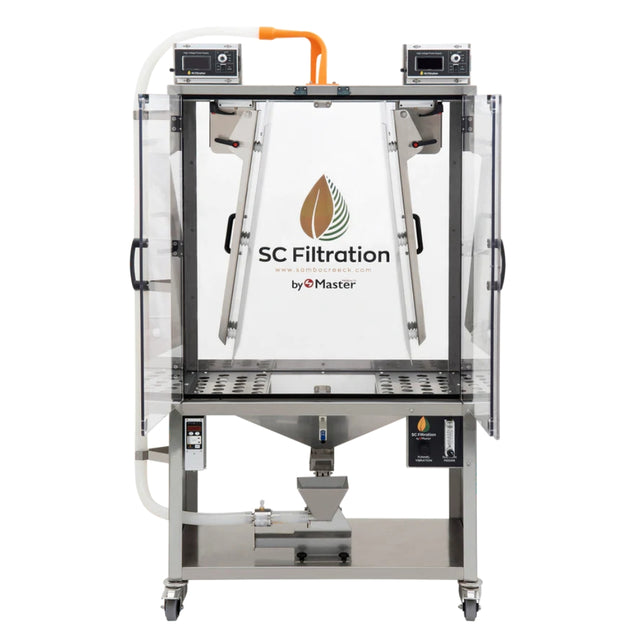

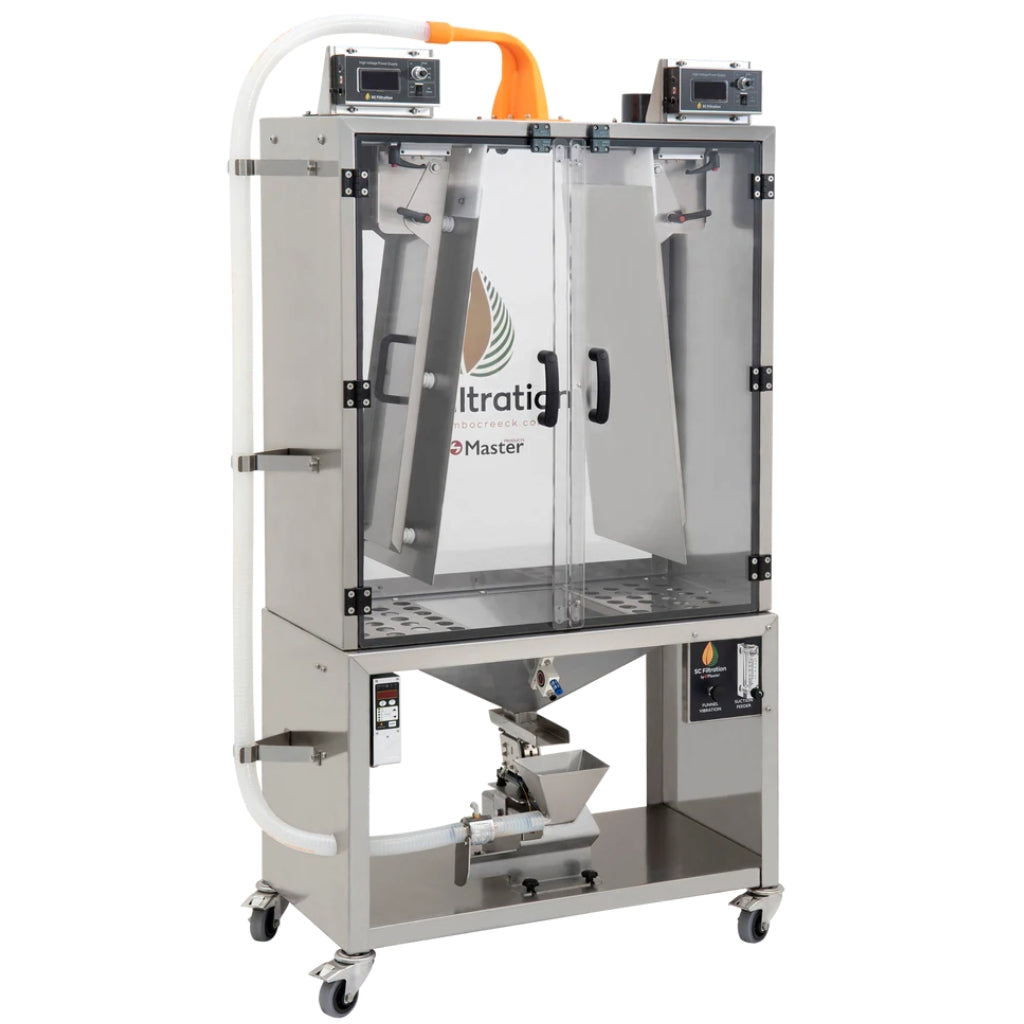

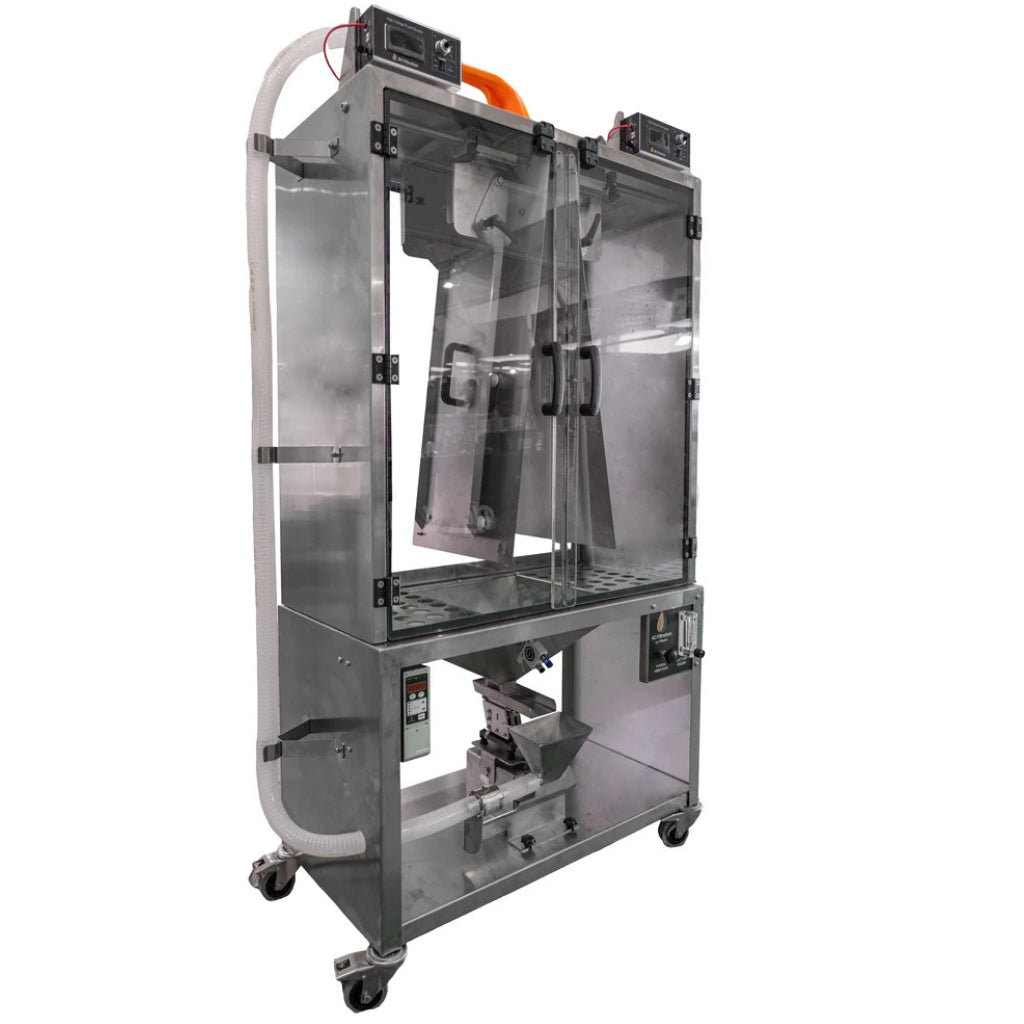

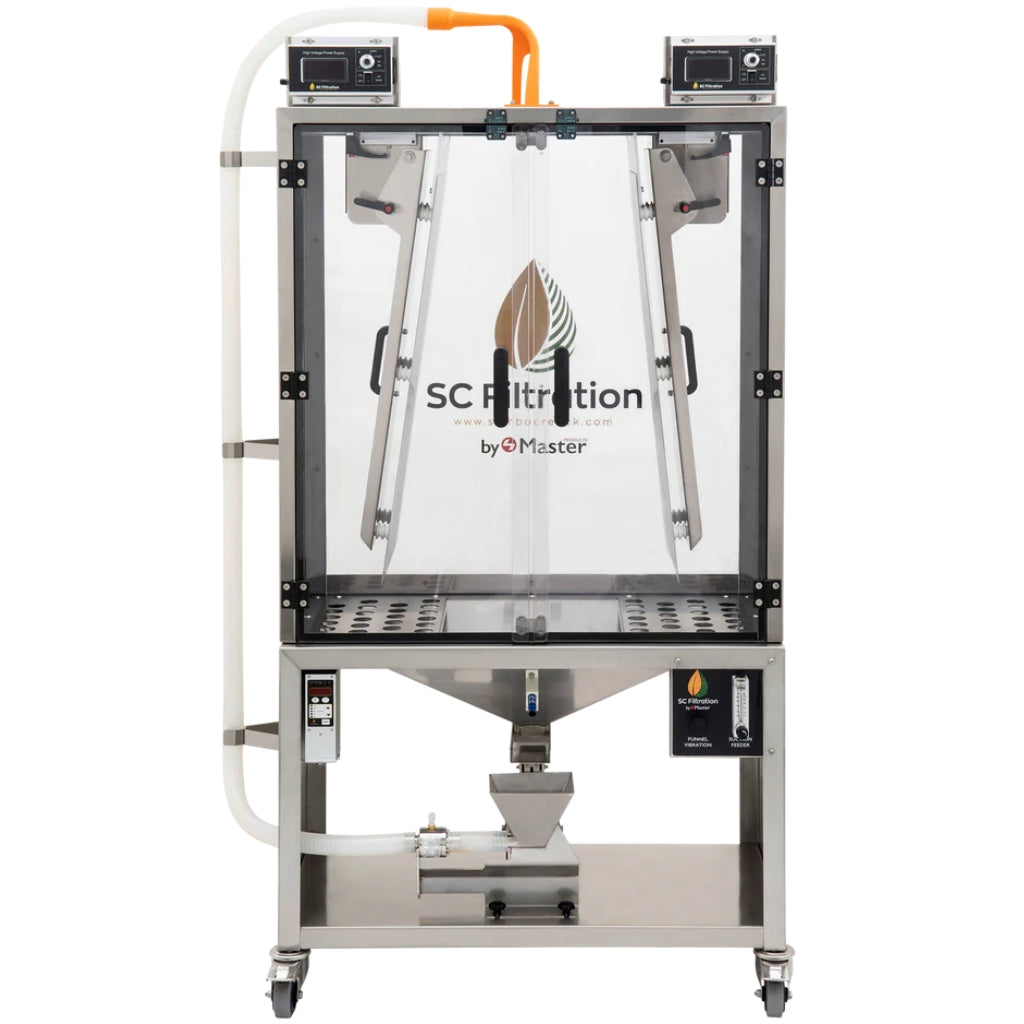

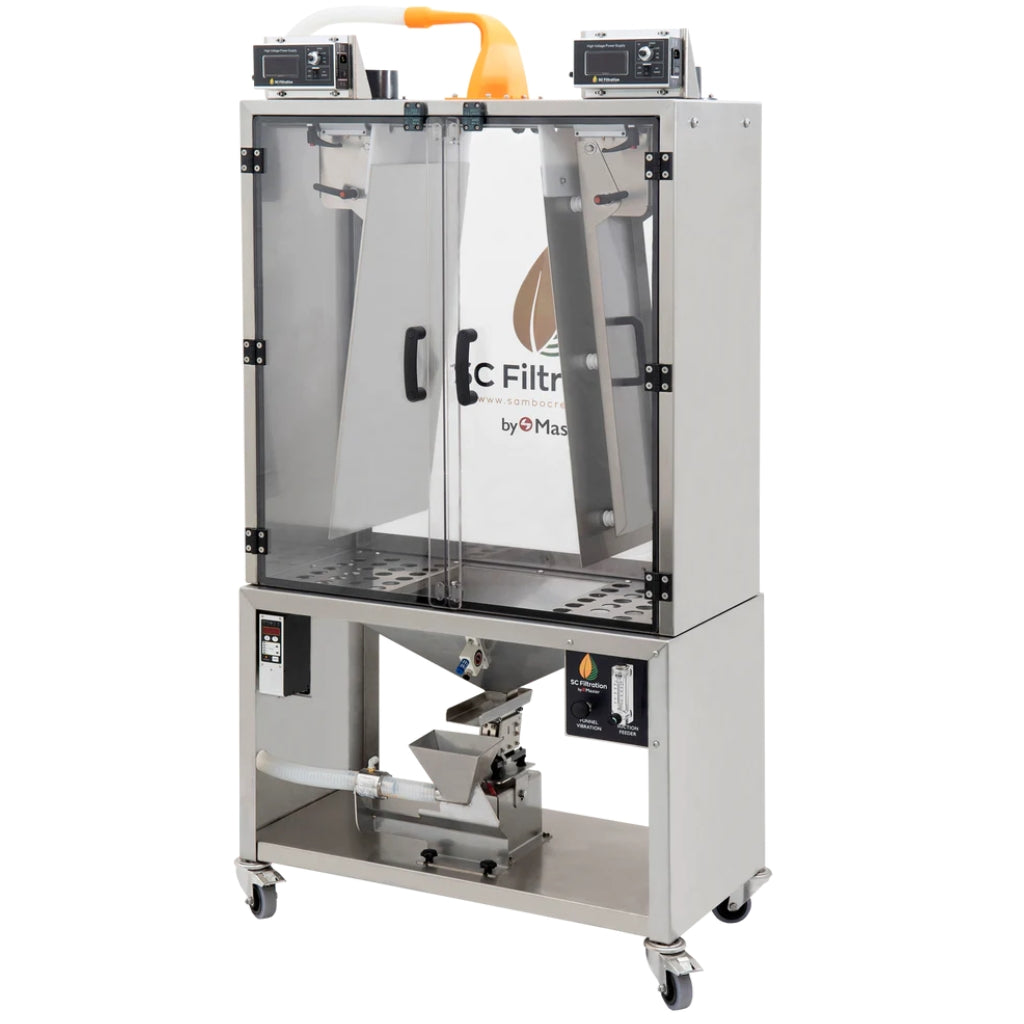

SC Filtration - Plasmastatic V1 Separator
SC Filtration - Plasmastatic V1 Separator is backordered and will ship as soon as it is back in stock.
DROP US AN EMAIL FOR CURRENT PRICING, OPTIONS AND LEAD TIMES
SC Filtration - Plasmastatic V1 Separator
SC Filtration - Plasmastatic V1 Separator is backordered and will ship as soon as it is back in stock.
SC Filtration - Plasmastatic V1 Separator
Description
Description
Base Configuration – Multiple Optional Upgrades Available
The Separatore Tribostatico is a professional cold plasma electrostatic trichome separation system designed to isolate trichome heads from finely prepared botanical material using static electricity rather than solvents or heat.
The price shown reflects the base configuration only. This system is available with multiple optional upgrades, allowing performance, automation, and control to be enhanced depending on processing requirements. Final pricing varies based on selected upgrades and configuration.
Product Overview
The Separatore Tribostatico utilises electrostatic charge differentiation within a cold plasma environment to separate trichome heads from contaminants such as plant particles, stalks, and dust.
Powdered material is introduced into the system where particles react differently based on size, mass, and composition. Valuable trichome heads are selectively attracted, while heavier or unwanted material is rejected. This process produces a cleaner, more refined dry sift compared to traditional screening methods.
The system is semi-automated as standard, with upgrade paths available for users who require increased throughput, automation, or operational control.
Key Benefits
The Separatore Tribostatico delivers solvent-free separation, eliminating the need for chemicals or heat and helping preserve delicate compounds. It produces high-purity dry sift with reduced contamination from unwanted plant matter.
Its modular design allows the base system to be expanded over time, making it suitable for operators who want to start with a core unit and upgrade as production demands increase. The system reduces manual labour compared to traditional dry sifting while maintaining consistency and repeatability.
Upgrade Options (Optional Enhancements)
The Separatore Tribostatico can be configured with a range of optional upgrades, including:

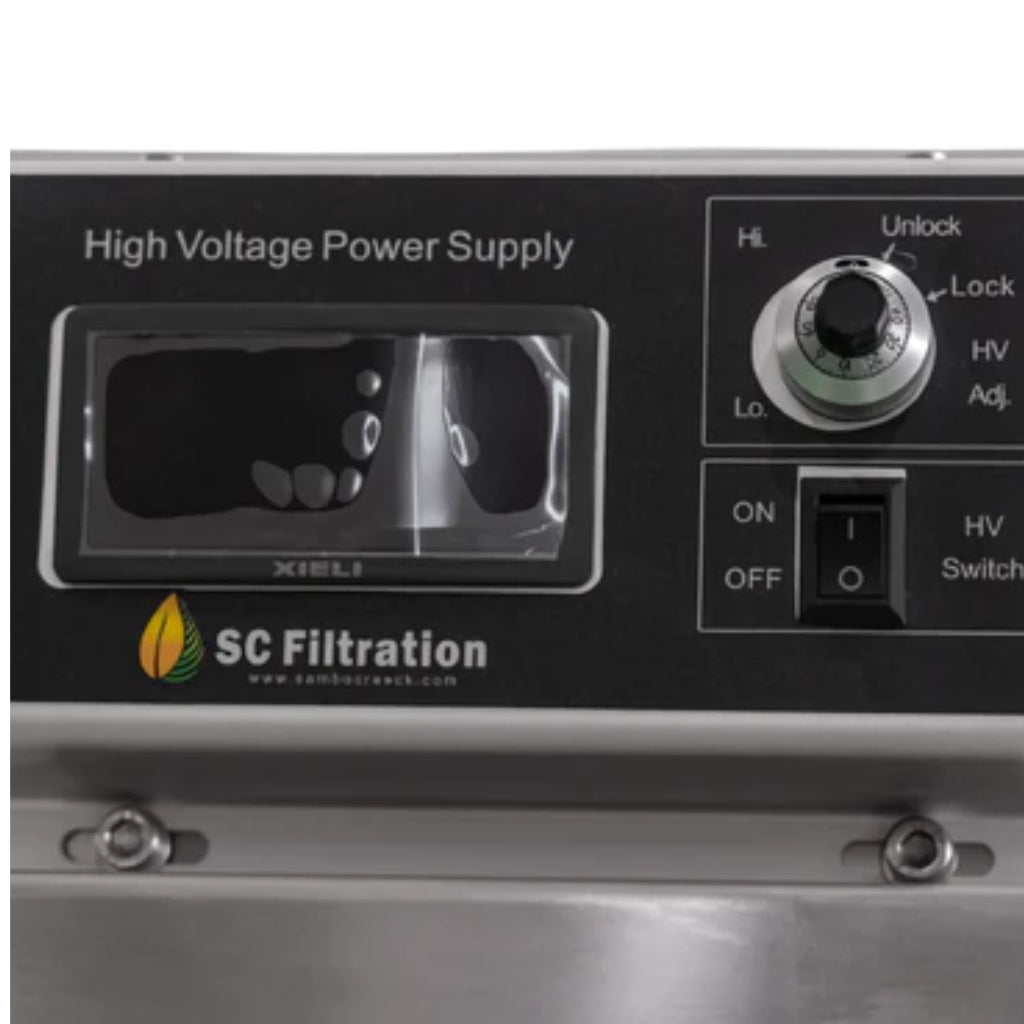

- Enhanced power supply packages
- Advanced discharge electrode systems
- PLC control systems with touchscreen interface and sensors

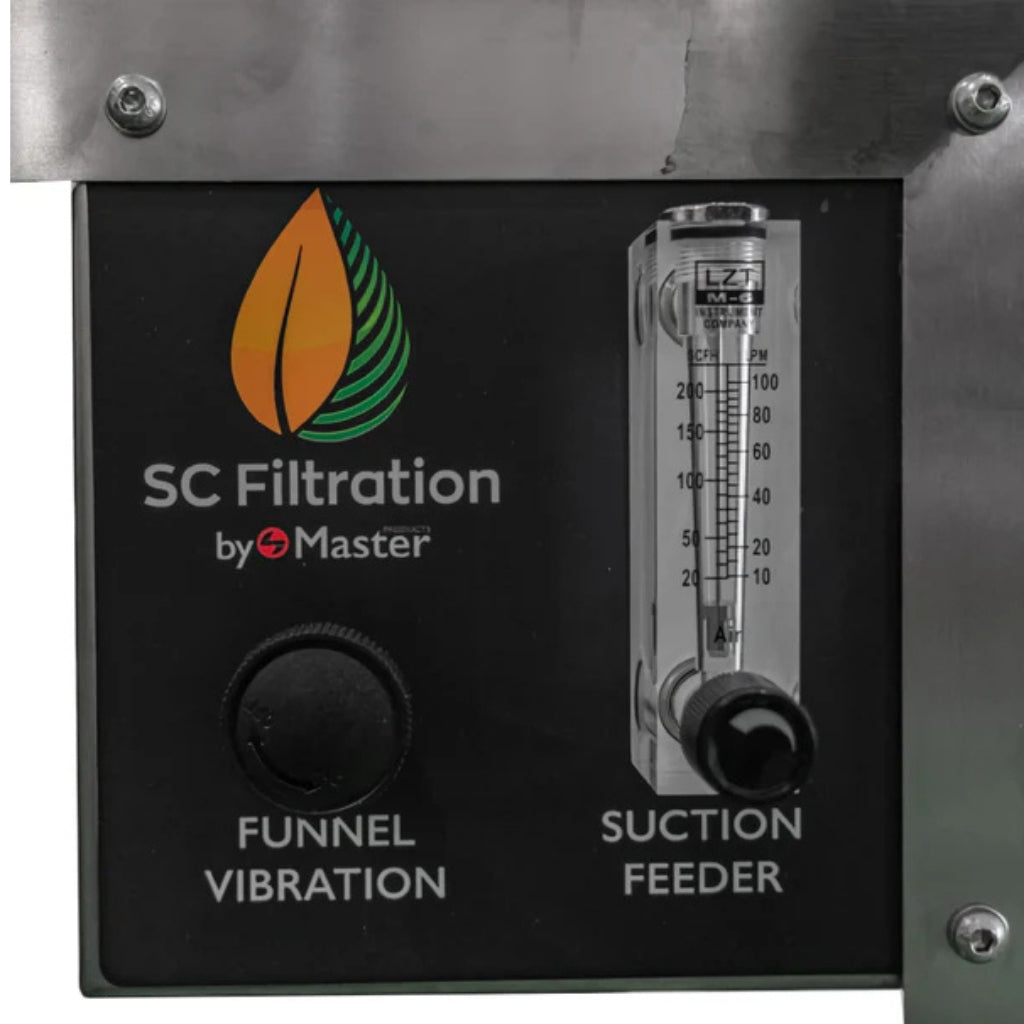

- Anti-clump vibrating hoppers
- Premium vibrating feeders and sieves
These upgrades can improve automation, reduce downtime, and increase overall separation efficiency. Pricing shown does not include these optional upgrades.
Use Case
The Separatore Tribostatico is ideal for professional processing environments seeking a reliable electrostatic separator without the complexity or cost of fully automated systems. It is well suited for improving dry sift quality before further processing, pressing, or refinement.
Its scalable design makes it particularly valuable for facilities planning gradual expansion while maintaining high material cleanliness and consistency.
Specifications
| Specification | Details |
|---|---|
| Separation Method | Cold plasma electrostatic separation |
| Configuration | Base model (upgradeable) |
| Process Type | Solvent-free, non-thermal |
| Input Material | Finely powdered botanical material |
| Output | High-purity dry sift / trichome heads |
| Processing Capacity | Approx. 500 g finished product per hour (base configuration) |
| Power Requirements | 100–230 VAC, 50–60 Hz, 5 Amps |
| Compressed Air Requirement | Dry compressed air required (air compressor not included) |
| Air Consumption | 8 CFM @ 100 PSI |
| Dimensions | 107 × 45 × 170 cm (42" × 18" × 67") |
| Weight | 220 lbs |
| Shipping Dimensions | 100 × 100 × 130 cm |
| Patent Protection | Protected by U.S. Patent No. 12,472,511 |
| Additional Patents | Patents pending in the U.S. and abroad |
| Legal Notice | Unauthorized use may result in legal action upon patent issuance |
| HS Code | 8537.20.00.40 |
Important Information
This is a precision professional system intended for experienced users. The price displayed is for the base unit only. Optional upgrades are available and can significantly affect performance and final cost. Please enquire to configure the system to your specific requirements.
